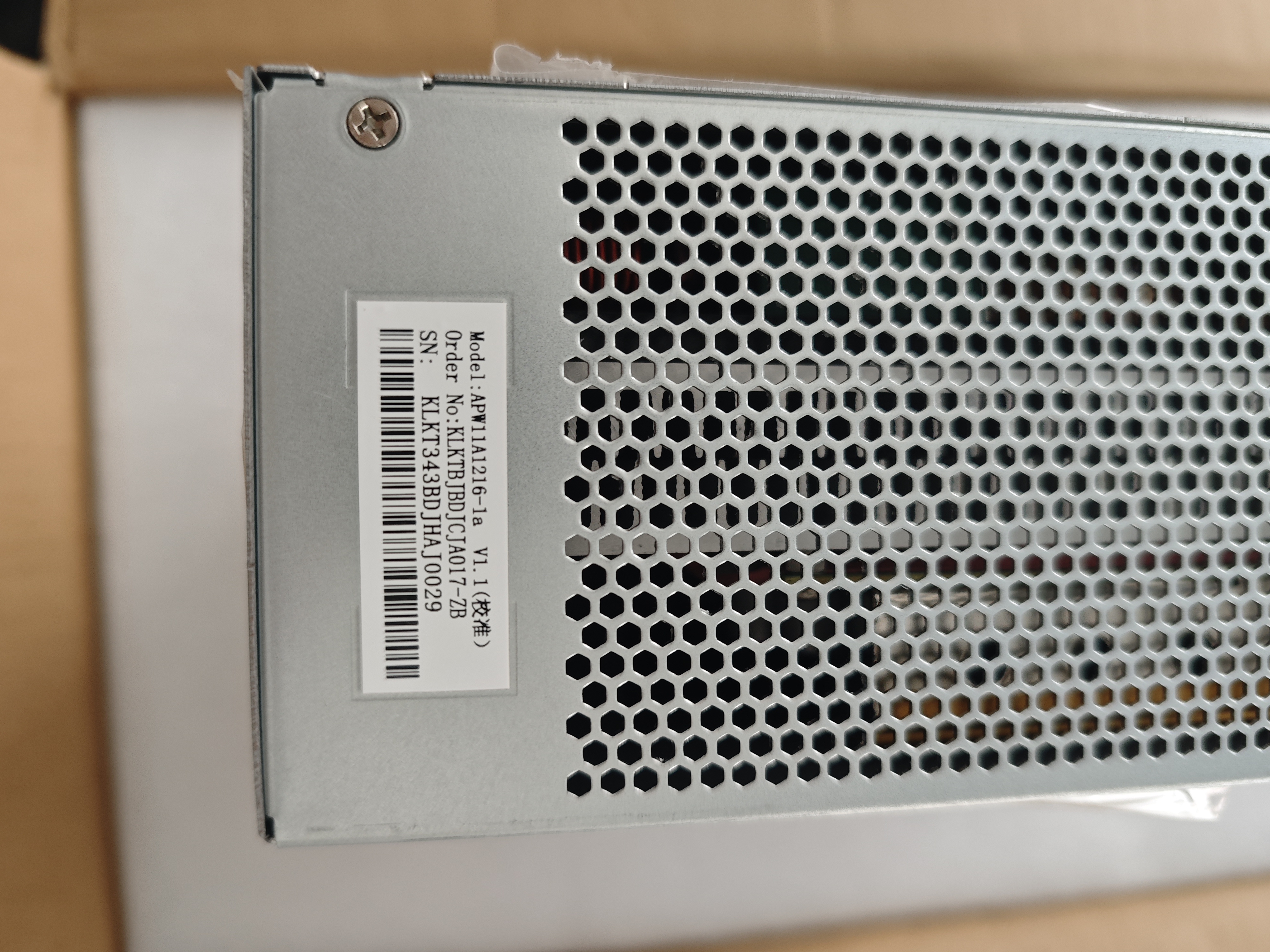

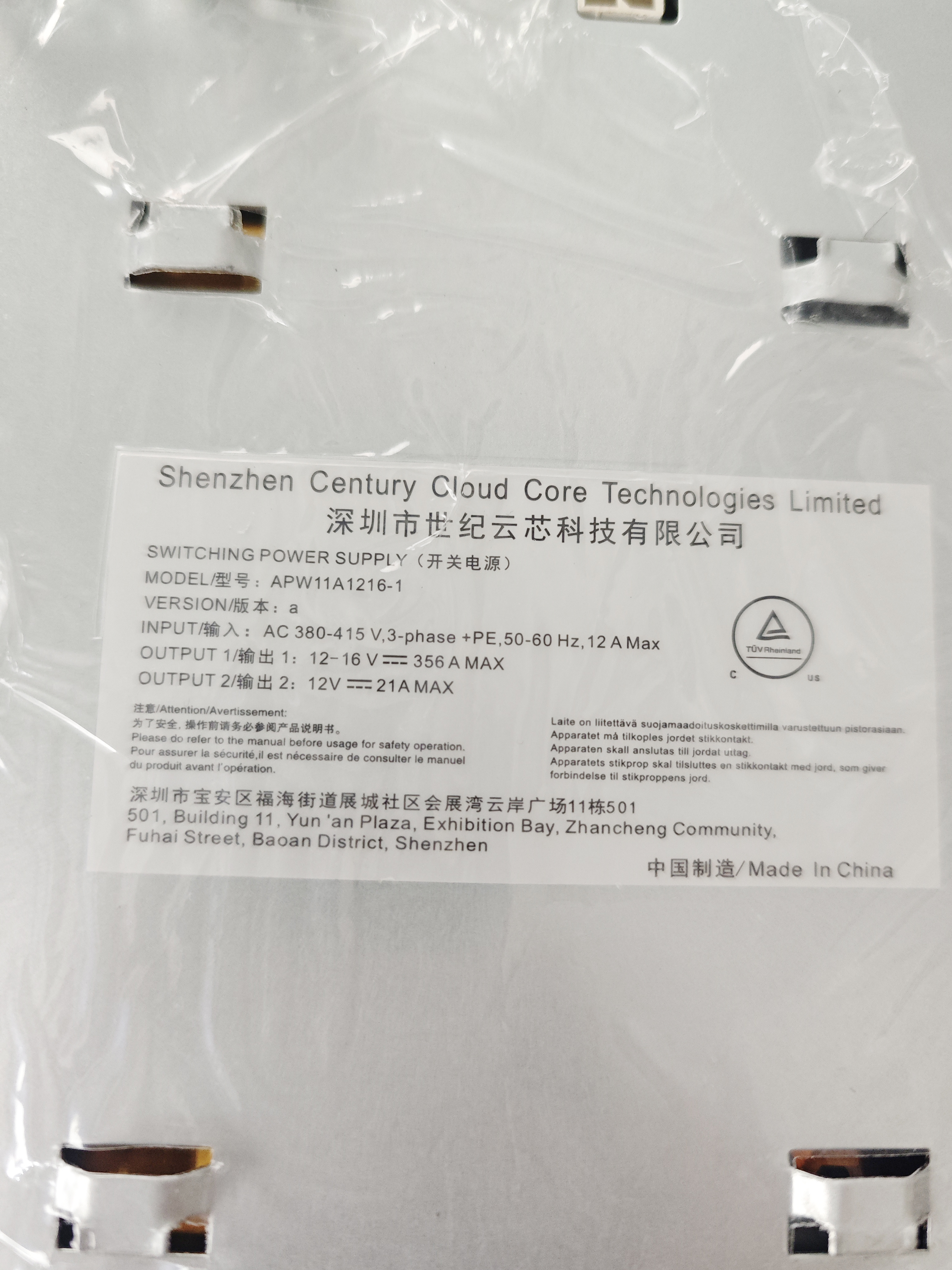

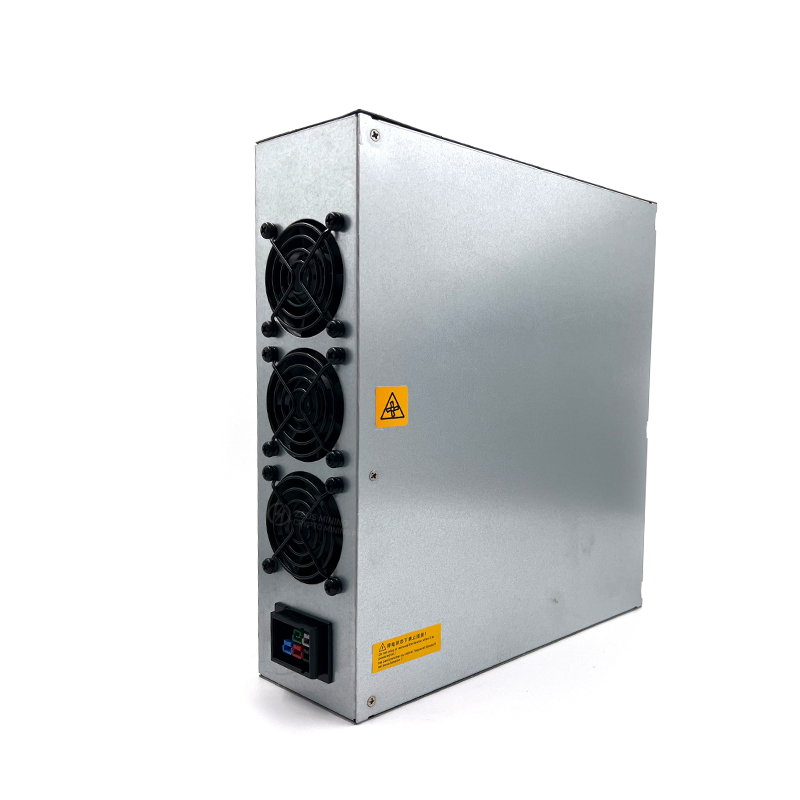

APW11A1216-1a PSU power supply for Antminer T21
$390.00$380.00
Description
Parameter:
Model: APW11A1216-1
Version: a
Input: AC 380-415V, 3-phase + PE, 50-60Hz, 12A Max
Output 1: 12-16V 356A MAX
Output 2: 12V 21A MAX
Carton packaging size: 315x340x350mm (3 pieces/carton)
Product specifications:
OUT1 | DC Voltage | 12V-16V |
Ripple & Noise | <1% | |
Source adjustment rate | <1% | |
Load Regulation | <1% | |
Start-up and rise time | <6S | |
Power-off retention time | >10mS | |
OUT2 | DC Voltage | 12.3V |
Rated current (three-phase 380V input) | 21A | |
Ripple & Noise | <1% | |
Voltage Accuracy | 12.2V-12.4V | |
Source adjustment rate | <1% | |
Load Regulation | <1% | |
Start-up and rise time | <5S | |
Power-off retention time | >10mS | |
Input | Voltage Range | 380V-415V AC |
Frequency Range | 50Hz-60Hz | |
Power Factor | >0.99 (full load) | |
Leakage Current | <1.5mA (380V 50Hz) | |
Protection | Input undervoltage protection value | 333V AC |
Output Short Circuit | Yes | |
Over-temperature protection | Yes | |
Output overcurrent protection value | 408A-453A | |
(protection value varies under different voltage) | ||
Environment | Operating Temperature | -20-45℃ |
Operating Humidity | 20%-90%RH (non-condensing) | |
Altitude | < 2000m | |
Structure | Dimensions | 290mm*250mm*80mm |
Net Weight | 6.4Kg | |
Cooling method | Forced air cooling | |
Noise | 55dB |
Function: Suit for Antminer T21 air cooling miner.
