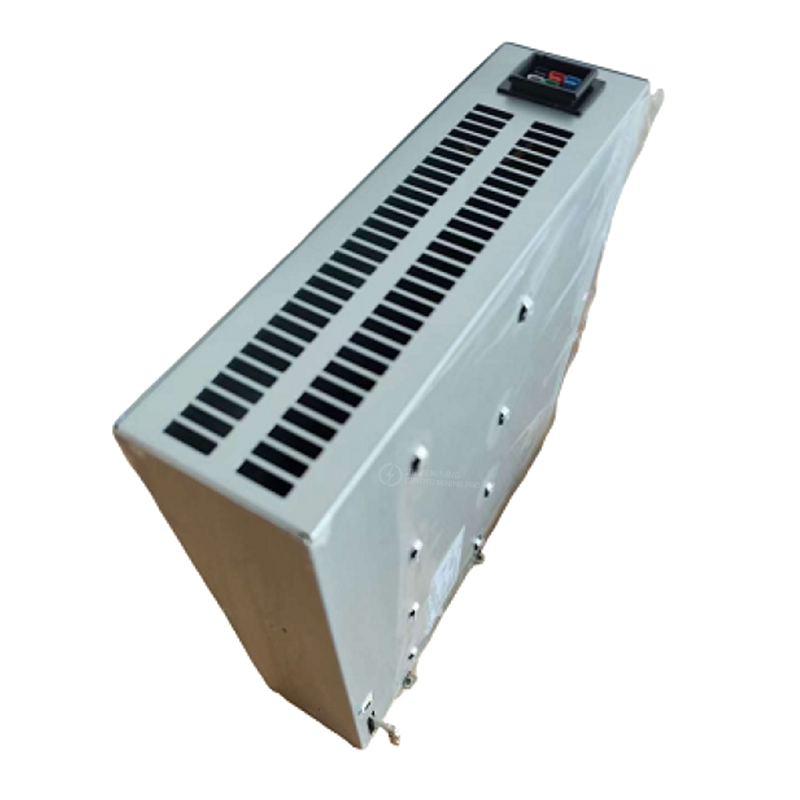

APW11M1216-1a 12V-16V V1.0 power supply for Antminer S21XP Imm
$350.00$342.00
Description:
The Bitmain APW11M1216-1a PSU is a dedicated power supply for the Antminer S21XP immersion-cooled miner. It provides a stable 12-16V output voltage and 380-415V AC input voltage. Designed to improve the overall operating efficiency and performance of the S21XP immersion miner, it ensures reliable power for high-intensity mining operations. With its customized design for immersion environments, stable power supply performance, and comprehensive safety protection, the APW11M1216-1a power supply meets the high-intensity mining needs of Antminer S21XP immersion miners, making it an indispensable accessory for your cryptocurrency mining equipment.
Parameters:
OUT1 | DC Voltage | 12V-16V |
Rated Current(380V input) | 356A | |
Ripple & Noise | <1% | |
Line Regulation | <1% | |
Load Regulation | <1% | |
Start-up and rise time | <10S | |
Power-off hold time | >3mS | |
OUT2 | DC Voltage | 12.3V |
Rated Current(380V input) | 21A | |
Ripple & Noise | <1% | |
Voltage Accuracy | 12.2V-12.4V | |
Line Regulation | <1% | |
Load Regulation | <1% | |
Start-up and rise time | <10S | |
Power-off hold time | >10mS | |
Input | Voltage Range | 380-415V AC |
Frequency Range | 50/60Hz | |
Power Factor | >0.99(full load) | |
Leakage Current | <5mA（380V 50Hz） | |
Protection | Input low-voltage protection value | <342V AC |
Output Short Circuit | Yes | |
Overheat Protection | Yes | |
Over-current Output | 400-440A（protection value varies under different voltage） | |
Environment | Operating Temperature | 20-55℃ |
Altitude | <2000m | |
Structure | Dimensions | 320*290*80mm |
Net Weight | 6.4kg | |
Cooling System | Immersion liquid cooling |
Function: Used to replace a faulty Bitmain Antminer APW11M1216-1a PSU.
